NORRD

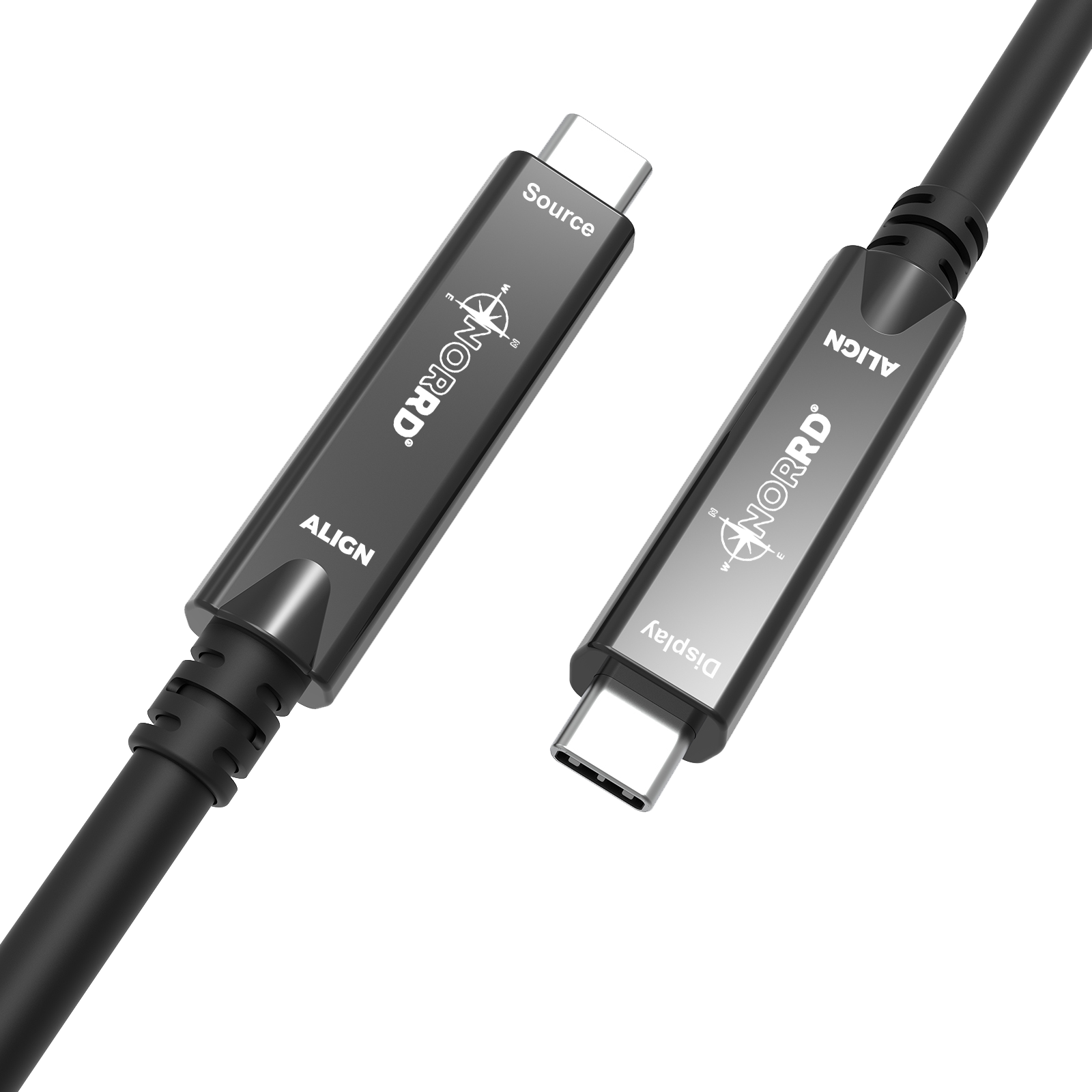

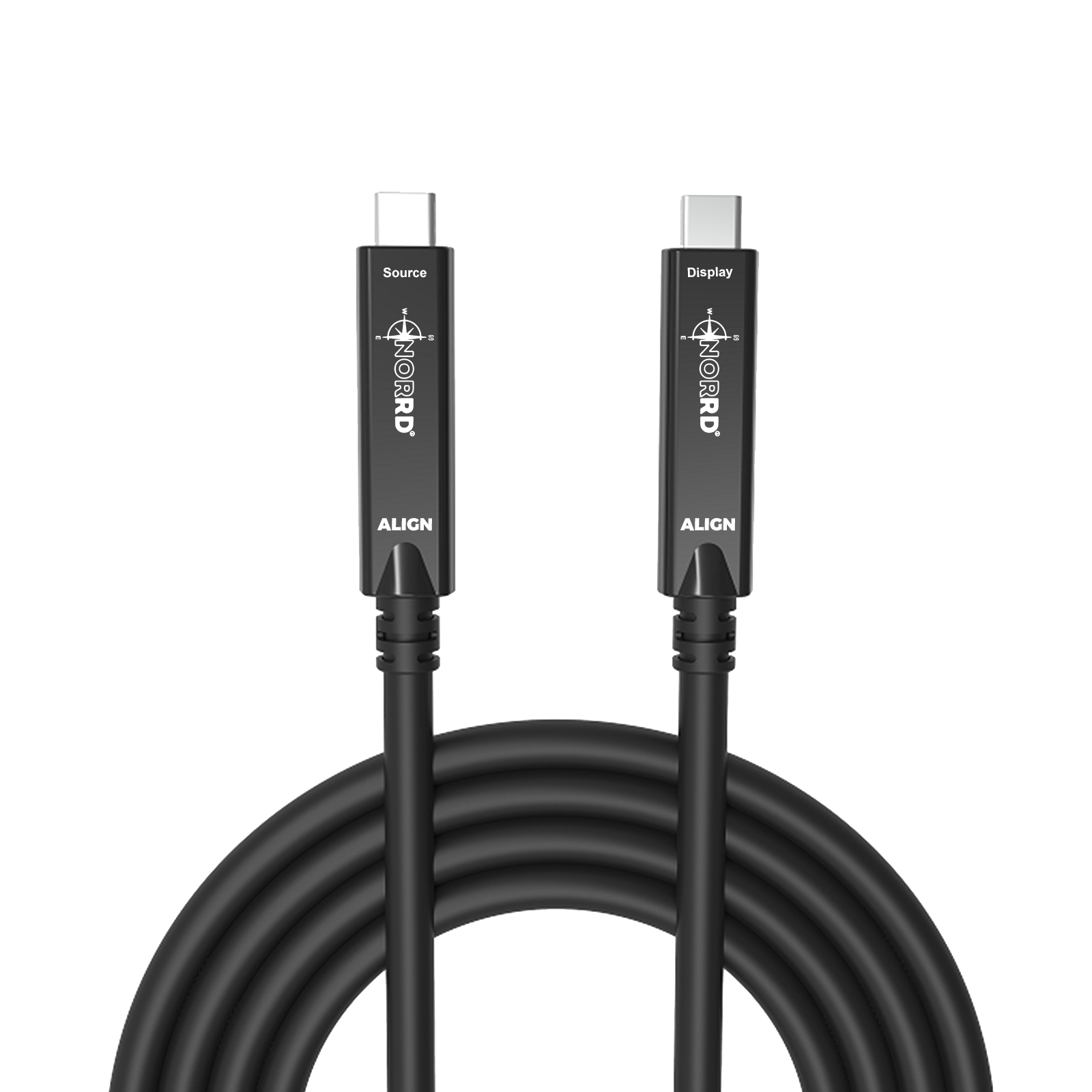

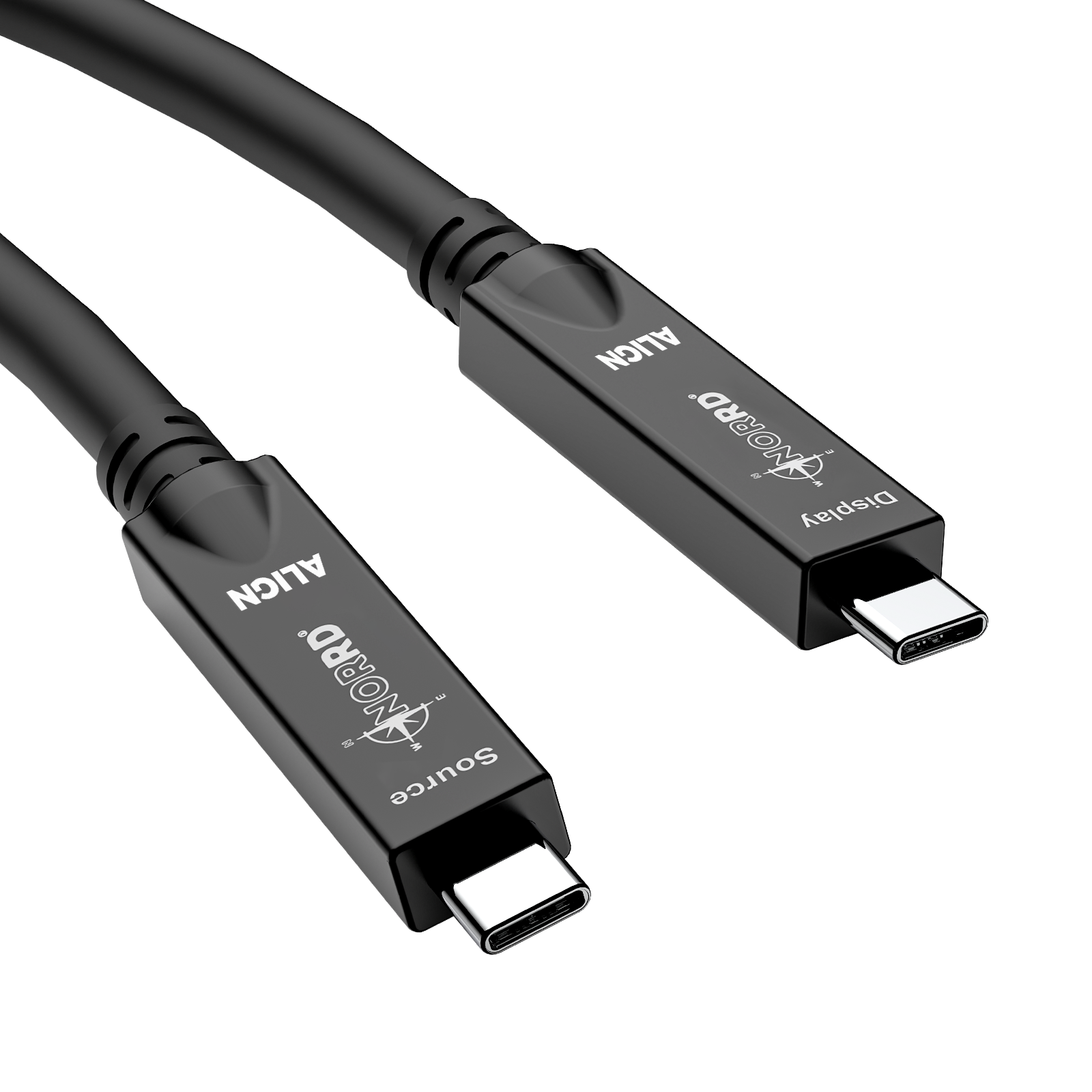

Align DualMode DP2 /4Lane USB-C
NC-Align-AOC-C-XXX
Full-feature USB-C AOC optimized for distance - with the ability to adapt to both DP2Lane + USB3.0 and DP4Lane + USB2.0.
8K30 or 4K60+USB
Dual DP Alt Mode
10 Gbps data
USB 3.2 Gen2 mode
USB-C AOC
Single-cable BYOD
Available Lengths
LengthSKU
3mNC-Align-AOC-C-003
5mNC-Align-AOC-C-005
7.5mNC-Align-AOC-C-0075
10mNC-Align-AOC-C-010
15mNC-Align-AOC-C-015
Key Features
§01
- Dual-mode USB-C AOC supports multiple DP Alt Mode configurations
- DP 4-lane mode for maximum video performance over distance
- DP 2-lane + USB 3.x mode for simultaneous video and fast data
- Active optical design ensures stable long-run BYOD operation
- Thin, flexible and EMI-resistant for professional installs
Description
High-performance active optical USB-C cable for professional integration. Supports dynamic DP Alt Mode configurations to balance video resolution and USB between different DP configurations. Transmit data and video over long distances without signal loss.
Technical Specifications
USB / VIDEO
Supported Modes
DP 2.1 4-lane + USB 2.0
Supported Modes
DP 1.4 2-lane + USB 3.2 Gen2x1
Max Video Resolution
Up to 8K@30Hz in DP 4-lane mode; up to 4K@60Hz with USB 3.2 data
Data Bandwidth
Up to 10 Gbps (Gen2x1) in DP 2-lane mode
Power Delivery Pass-through
Yes (source dependent)
Cable Type
Hybrid Active Optical Cable (AOC)
Connector Type
USB-C to USB-C
