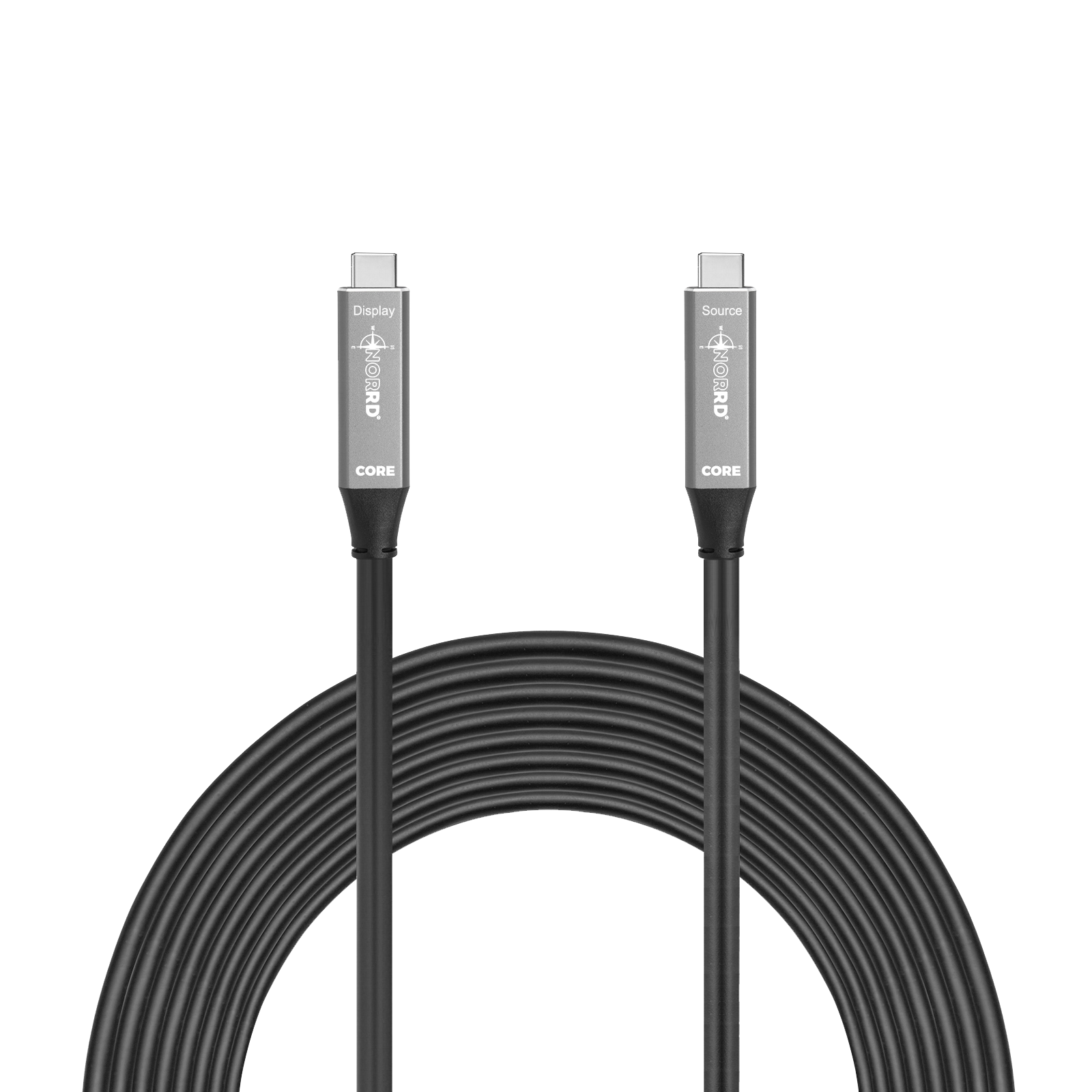

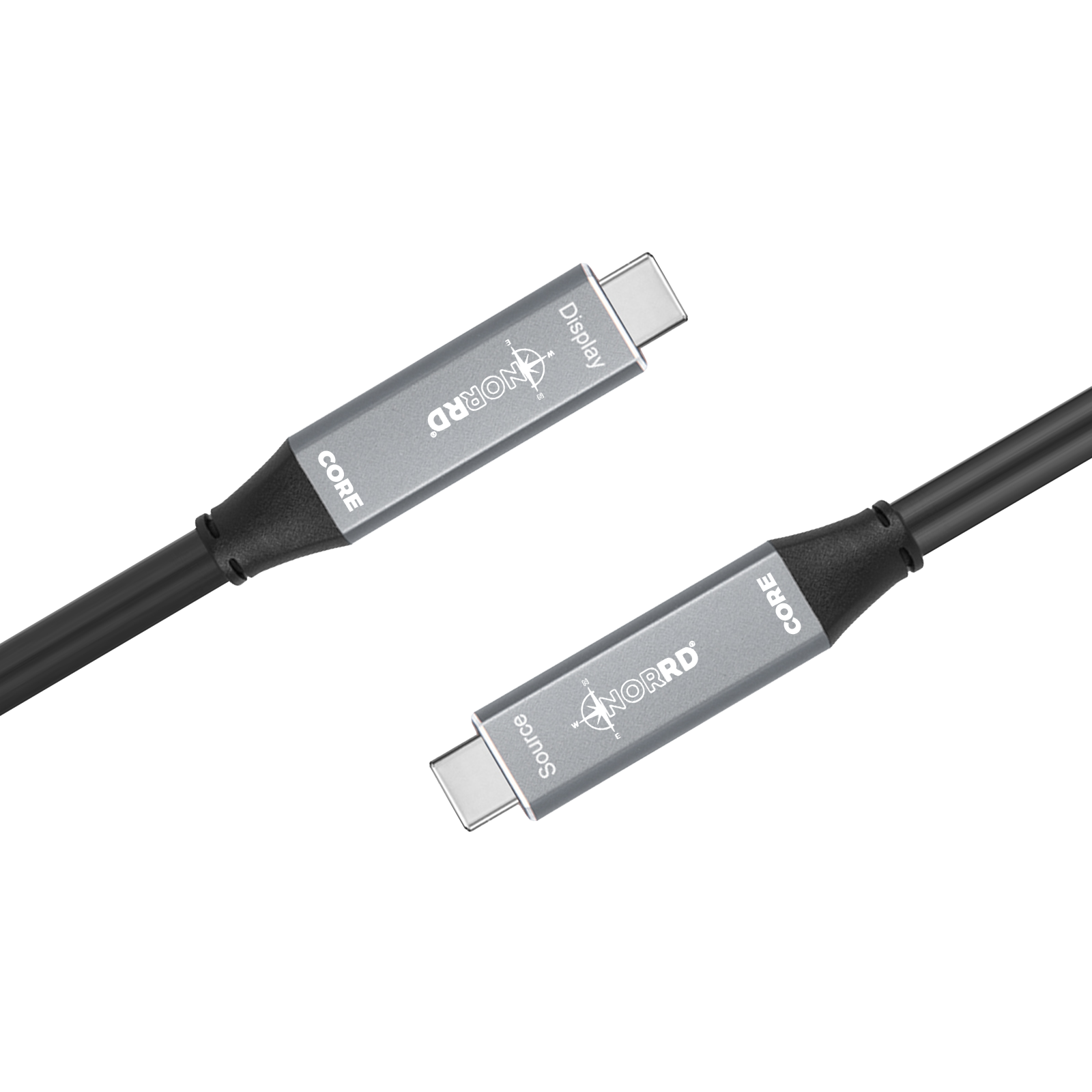

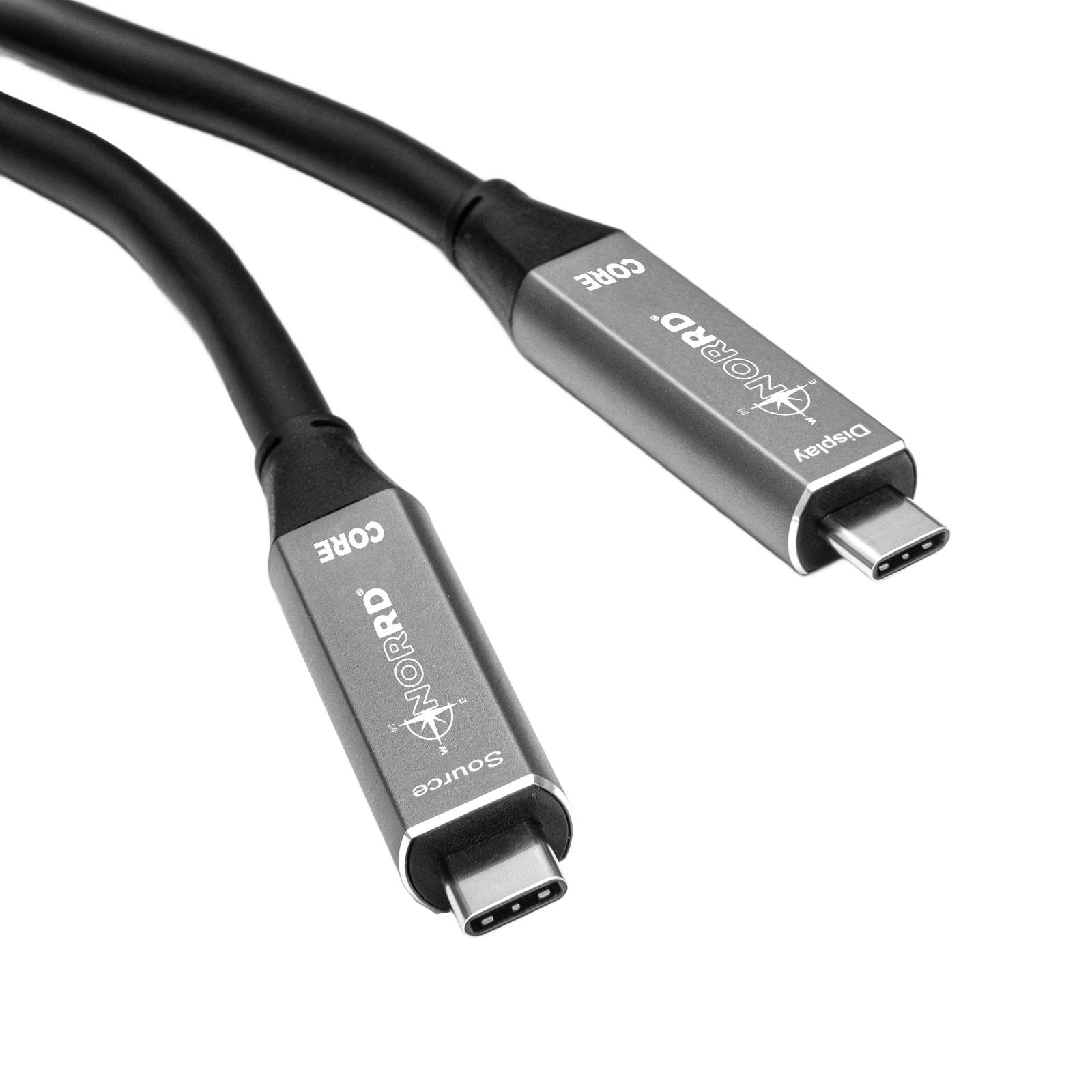

AOC USB-C 2Lane DP + USB3.0
NC-Core-AOC-C-XXX
Stable long-run USB-C for meeting rooms. Perfect for BYOD with charging, USB data and DisplayPort Alt Mode support.
4K60 + USB 3.0
BYOD over distance
60W PD
Laptop charging
Up to 15 m
Hybrid USB-C AOC
Available Lengths
LengthSKU
3 mNC-Core-AOC-C-003
5 mNC-Core-AOC-C-005
7,5 mNC-Core-AOC-C-0075
10 mNC-Core-AOC-C-010
15 mNC-Core-AOC-C-015
Key Features
§01
Key Features
- Hybrid AOC USB-C designed for BYOD video + data over distance
- 2-lane DisplayPort Alt Mode for up to 4K@60Hz video (device dependent)
- Simultaneous USB 3.0 / 3.2 Gen1 data alongside video
- Optical transmission ensures long-run signal stability and low noise
- Flexible, install-friendly cable with strong EMI resistance
Description
Hybrid active optical USB-C cable for professional installs. Handles USB 3.2 Gen1 data, USB 2.0 and 2-lane DP 1.4 Alt Mode video to reach up to 15 meters with stable signal quality.
Technical Specifications
GENERAL
Cable Type
Hybrid Fiber + Copper
Available Lengths
3m, 5m, 7.5m, 10m, 15m
Interface
USB-C Male to USB-C Male
Plug & Play
Yes (No driver required)
VIDEO
DP Standard
DP 1.4 (2-Lane)
DP Bandwidth
DP1.4: 8.1Gbps x2
Max Resolution
4K@60Hz
DATA
USB Data Rate (USB3.0)
5Gbps
USB Data Rate (USB2.0)
480Mbps
Backward Compatibility
USB 2.0 / 1.1
POWER
Power Delivery
60W (20V 3A)
Operating Voltage
5V–20V (Vconn)
Power Consumption
1100mW
MECHANICAL
Cable OD
6.5±0.3mm
Cable Color
Black
Jacket Material
TPE
Filler Material
Kevlar
Min Bend Radius
65mm
Connector Pull Strength
15kg (150N)
Cable Pull Strength
20kg (200N)
ENVIRONMENT
EMI Resistance
High
RFI Resistance
High
Operating Temp
0°C ~ 60°C
Storage Temp
-20°C ~ 70°C
Humidity
5% – 90%
PACKING
Packaging Type
ESD Bag
