NORRD

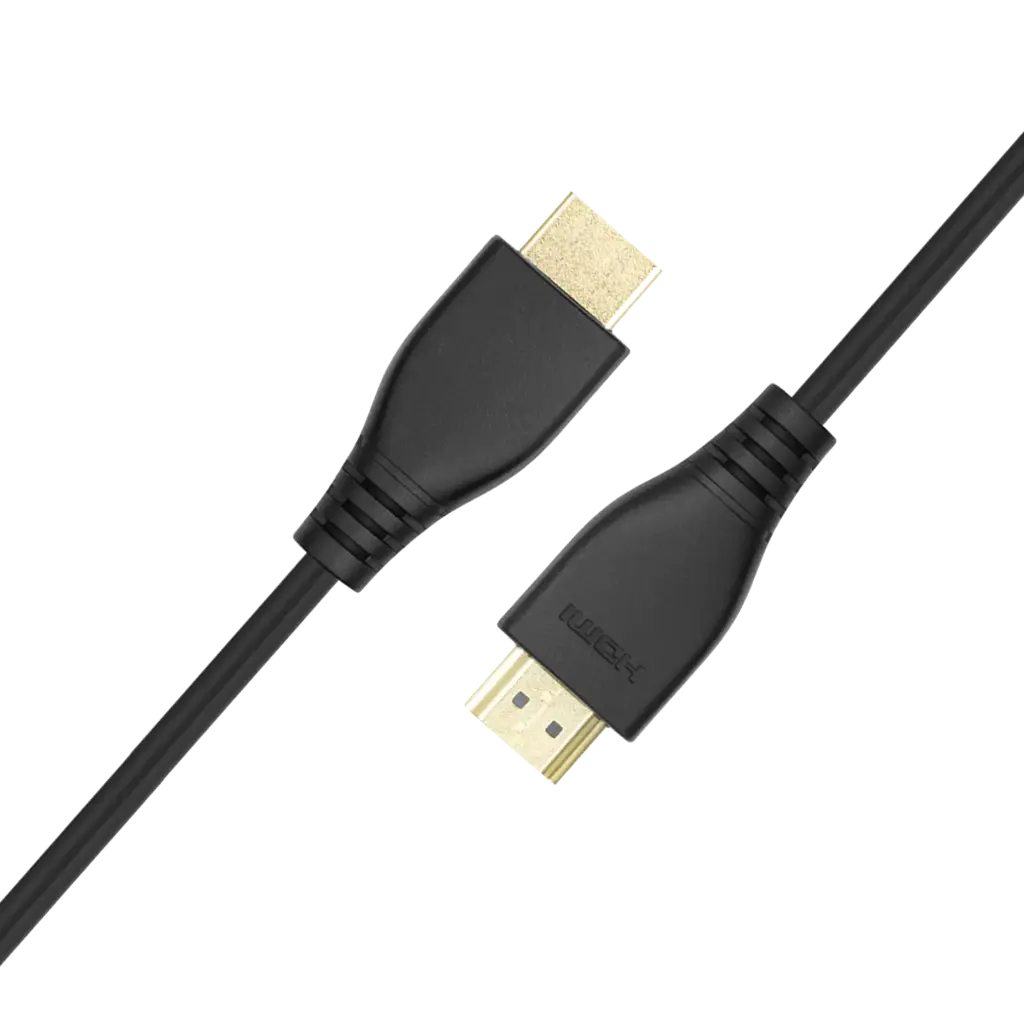

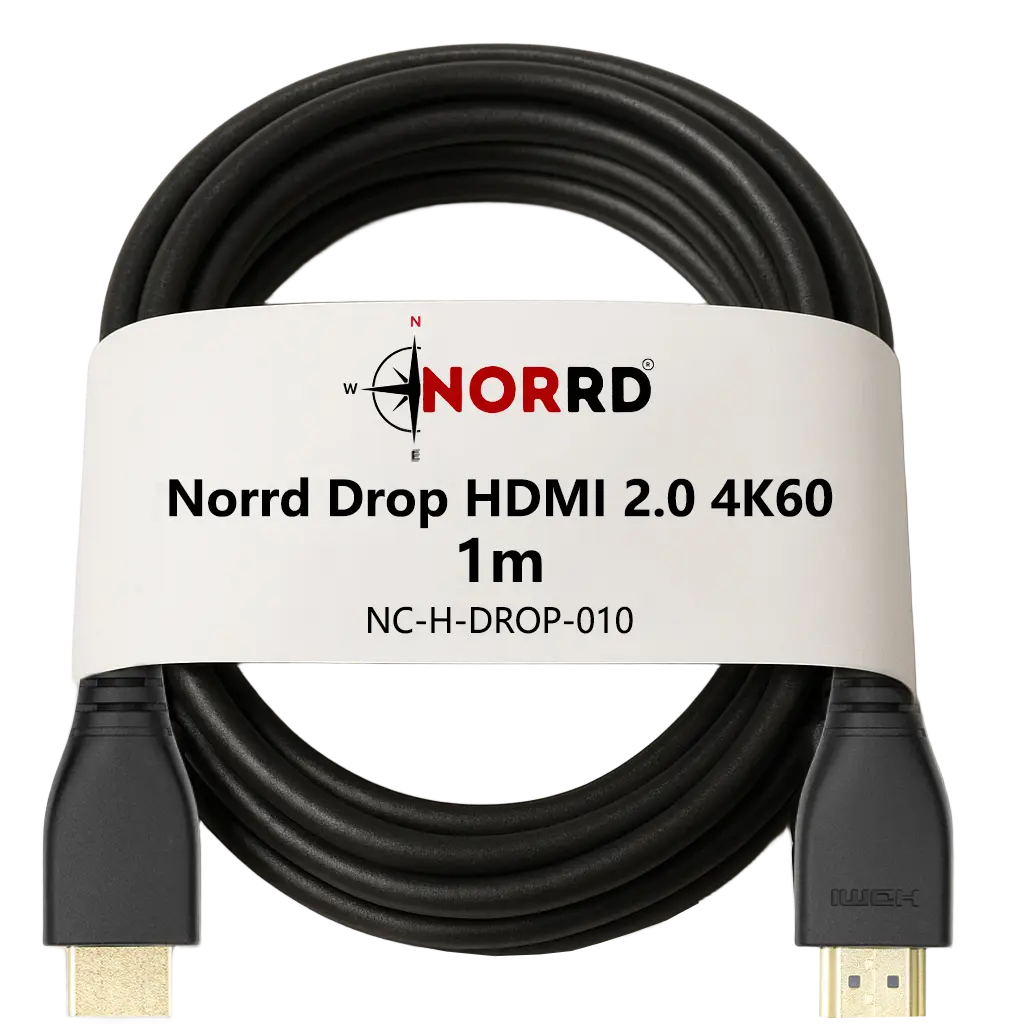

Flexible HDMI 2.0 Cable
NC-H-DROP-XXX
Flexible HDMI patch cable with full 4K60 support.
Flexible HDMI
Clean visible runs
4K60 18 Gbps
Full HDMI 2.0
1–3 m lengths
Patch and table use
Available Lengths
LengthSKU
1 mNC-H-DROP-001
2 mNC-H-DROP-002
3 mNC-H-DROP-003
Key Features
§01
Key Features
- Flexible slim HDMI 2.0 cable for short visible runs
- Supports 4K@60Hz video and 18 Gbps bandwidth
- Perfect for patching table wells and wall outlets
- Easy to handle for frequent re-plugging
- Professional finish for clean meeting room installs
Description
Light and flexible HDMI 2.0 cable for short passive distances where the cable is visible or frequently moved. Delivers up to 4K@60Hz and 18 Gbps bandwidth.
Technical Specifications
GENERAL
Cable Type
Passive copper HDMI
Available Lengths
1m, 2m, 3m
Interface
HDMI-A Male to HDMI-A Male
VIDEO
HDMI Standard
HDMI 2.0
HDCP
HDCP 2.2
Max Resolution
4K@60Hz
Bandwidth
18Gbps
Pixel Clock
6Gb/s per channel
Color Depth
16/24bit RGB/YUV
3D Support
Yes
EDID
Supported
CEC
Supported
HEAC
Supported
Audio Return Channel
Supported
AUDIO
Audio Transmission
Digital Audio
Multi-Stream Audio
Supported
MECHANICAL
Cable OD
7.3±0.2mm
Cable Color
Black
Jacket Material
PVC
Connector Material
Plastic Injection
Contact Material
24K Gold Plated
Shielding
Aluminum Foil + Braided
Conductor Gauge
28AWG Bare Copper
PACKING
Packaging Type
Paper cable ties
Downloads
Product Datasheet
Product Datasheet
Auto-generated product datasheet (one-pager)
