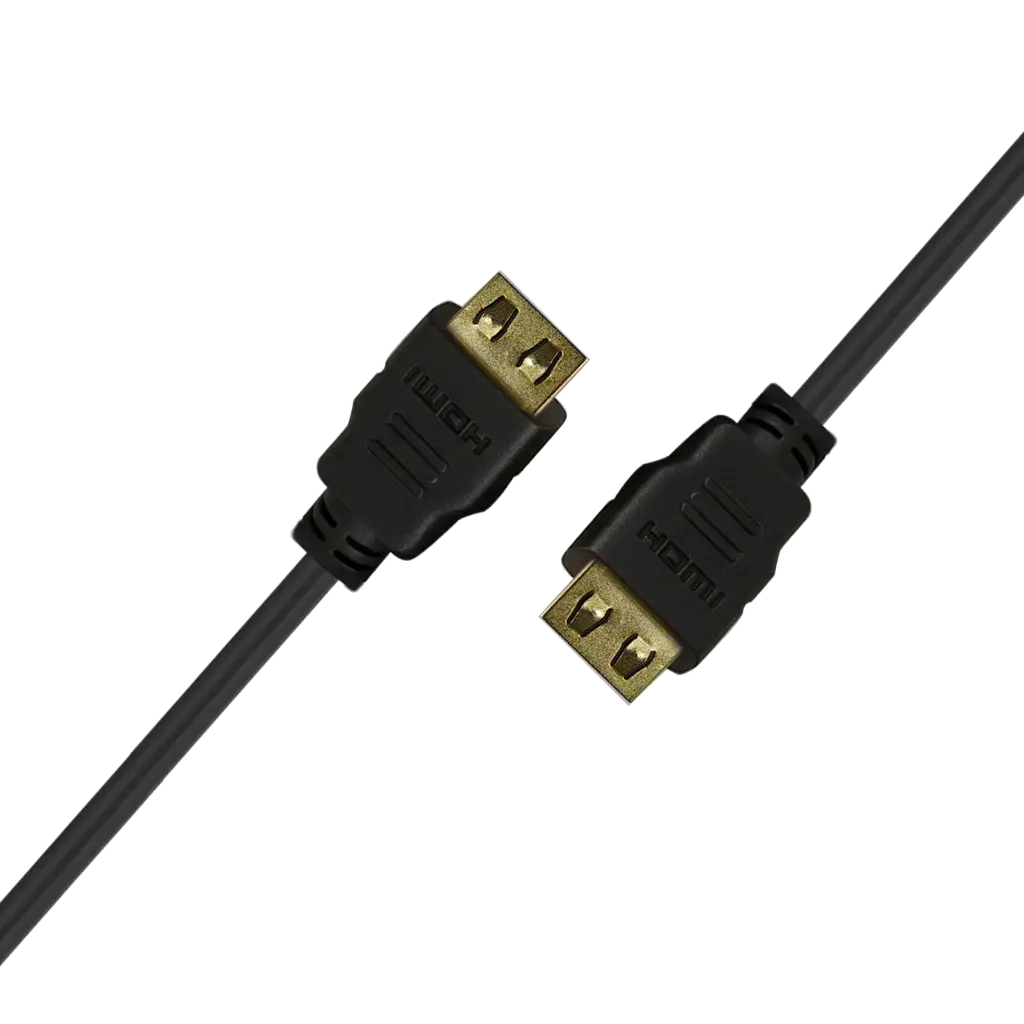

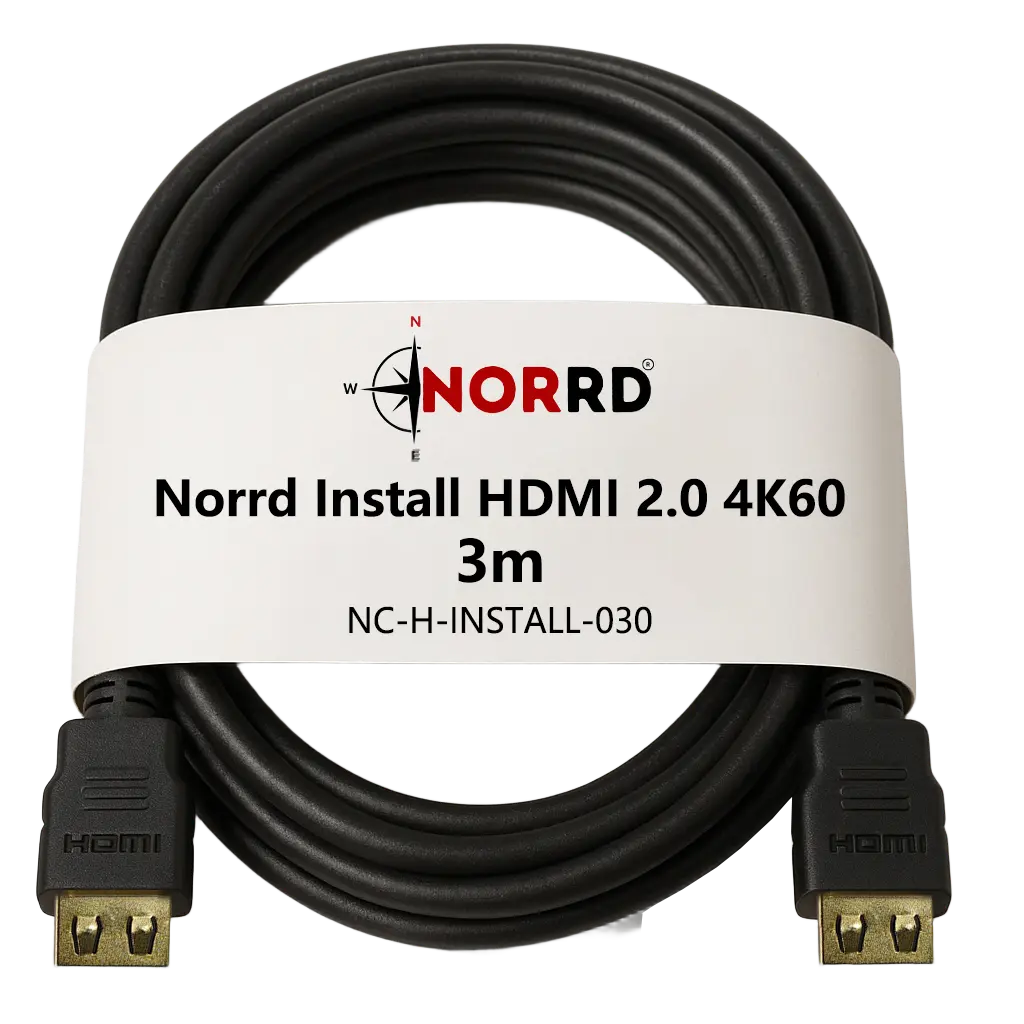

Robust Install-cable HDMI 2.0
NC-H-INSTALL-XXX
Rugged HDMI for permanent routing.
Install HDMI 2.0
Permanent routing cable
4K60 18 Gbps
Full UHD signal
Locking connector
Secure AV connection
Available Lengths
LengthSKU
3 mNC-H-INSTALL-003
5 mNC-H-INSTALL-005
7,5 mNC-H-INSTALL-0075
Key Features
§01
Installation-grade HDMI 2.0 cable for permanent routing
Supports 4K@60Hz and full 18 Gbps bandwidth
Thicker, more robust construction for longer passive runs
Form-stiff design makes conduit pulling easier
Built for reliable pro AV installations
Description
Installation-friendly HDMI cable for permanent routing in conduits or longer passive runs between devices. Larger diameter helps maintain HDMI 2.0 performance.Full tested in all lenghts togheter with Norrd Drop 3m i full 4K60.
Technical Specifications
GENERAL
Cable Type
Passive copper HDMI
Available Lengths
3m, 5m, 7.5m
Interface
HDMI-A Male to HDMI-A Male
VIDEO
HDMI Standard
HDMI 2.0
HDCP
HDCP 2.2
Max Resolution
4K@60Hz
Bandwidth
18Gbps
Pixel Clock
6Gb/s per channel
Color Depth
16/24bit RGB/YUV
3D Support
Yes
EDID
Supported
CEC
Supported
HEAC
Supported
Audio Return Channel (ARC)
Supported
AUDIO
Audio Transmission
Digital Audio
Multi-Stream Audio
Supported
MECHANICAL
Cable OD
7.8±0.2mm
Cable Color
Black
Jacket Material
PVC
Connector Material
Plastic Injection
Contact Material
24K Gold Plated
Connector Locking Mechanism
YES
Shielding
Aluminum Foil + Braided
Conductor Gauge
26AWG Bare Copper
PACKING
Packaging Type
Paper cable ties
