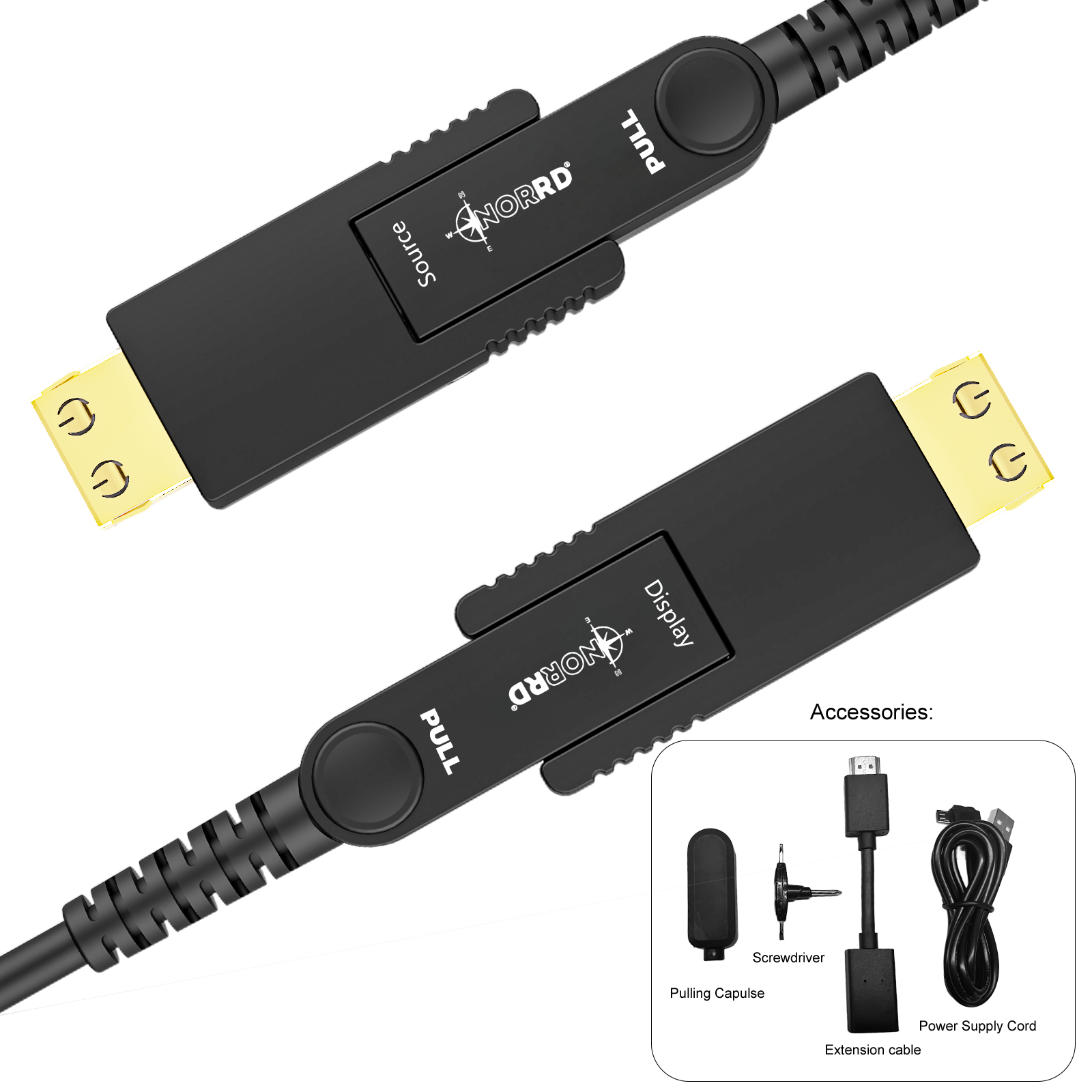

AOC PULL - Detachable plugs for tighter runs
NC-Pull-AOC-H-XXX
Detachable-head HDMI AOC for easy installs.
Detachable heads
Pull through conduit
Up to 100 m
Long-run HDMI AOC
4K60 18 Gbps
Full HDMI 2.0
Available Lengths
LengthSKU
5 mNC-Pull-AOC-H-005
7,5 mNC-Pull-AOC-H-0075
10 mNC-Pull-AOC-H-010
15 mNC-Pull-AOC-H-015
20 mNC-Pull-AOC-H-020
30 mNC-Pull-AOC-H-030
50 mNC-Pull-AOC-H-050
70 mNC-Pull-AOC-H-070
100 mNC-Pull-AOC-H-100
Key Features
§01
Key Features
- Detachable connector heads for easy conduit pulls
- Active optical HDMI 2.0 with full 18 Gbps performance
- Maintains 4K@60Hz 4:4:4 video over long distances
- No external power needed for clean installs
- Ideal for tight routing where standard HDMI heads won’t fit
Description
High-performance active optical HDMI cable with removable connectors, built for critical professional installations and conduit pulls. Maintains full 4K60 integrity up to 100 m without external power.
Technical Specifications
GENERAL
Cable Type
Hybrid Fiber + Copper
Available Lengths
From 10 m to 100 m
Main Connector
HDMI Type D to D
Adapter Type
HDMI D to HDMI-A Adapter
Plug & Play
Yes (No driver required)
VIDEO
HDMI Standard
HDMI 2.0
HDCP
HDCP 2.2
Max Resolution
4K@60Hz
Bandwidth
18Gbps
Pixel Clock
6Gb/s per channel
Color Depth
16/24bit RGB/YUV
3D Support
Yes
EDID
Supported
CEC
Supported
HEAC
Supported
Audio Return Channel (ARC)
Supported (up to 50m)
AUDIO
Audio Transmission
Digital Audio
Multi-Stream Audio
Supported
MECHANICAL
Cable OD
4.5 ±0.2mm
Cable Color
Black
Jacket Material
LSZH
Connector Material
Die-cast Zinc Alloy
Contact Material
24K Gold Plated
Shielding
Triple Shielded
Filler Material
Kevlar + Al Mylar
Min Bend Radius
20mm
Connector Pull Strength
21kg (210N)
Cable Pull Strength
45kg (450N)
ENVIRONMENT
EMI Resistance
High
RFI Resistance
High
Operating Temp
0°C ~ 60°C
Storage Temp
-20°C ~ 70°C
Humidity
5% – 90%
PACKING
Packaging Type
ESD Bag
