HDBaseT™ Wallplate KVM extender Kit

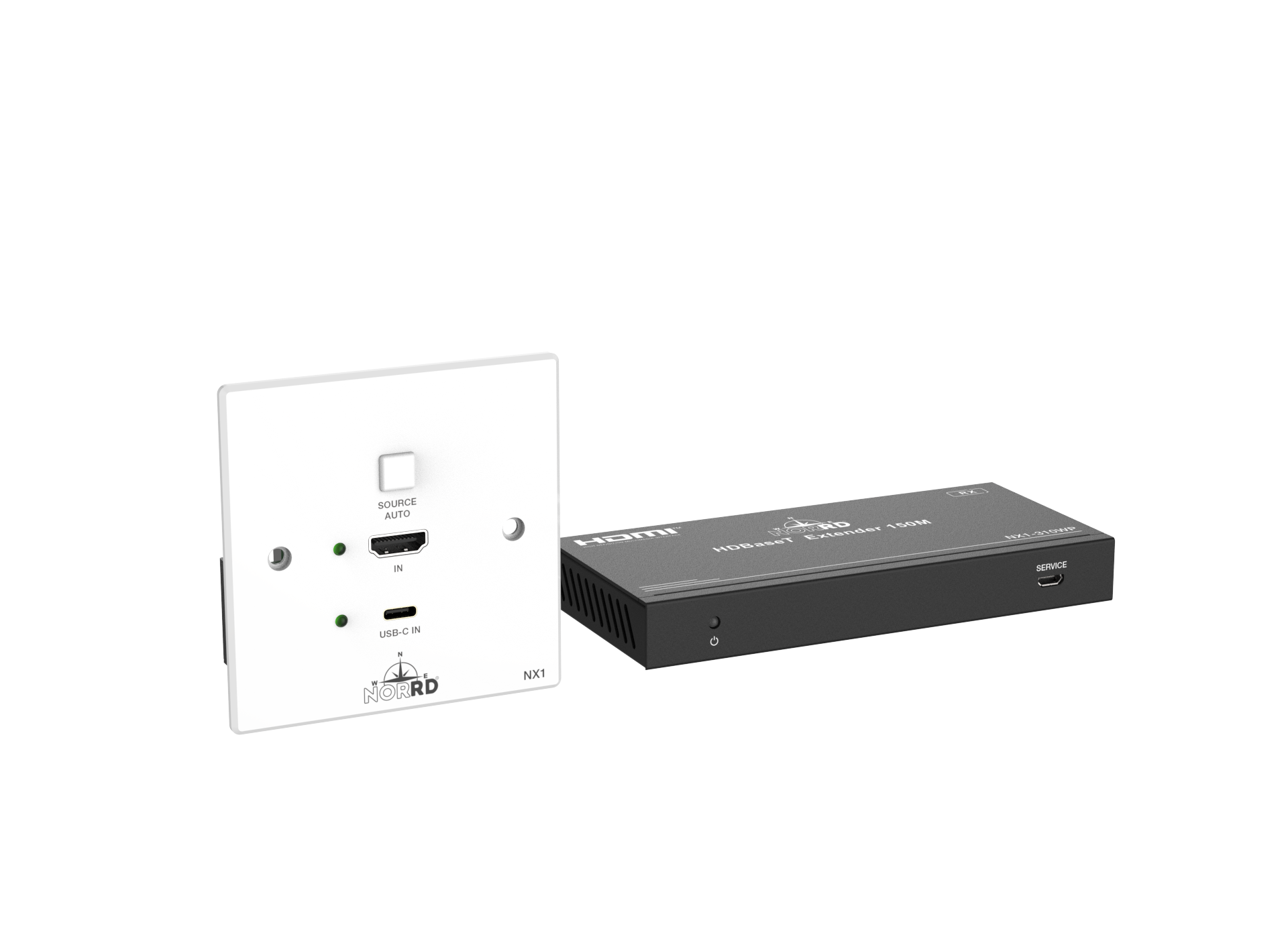

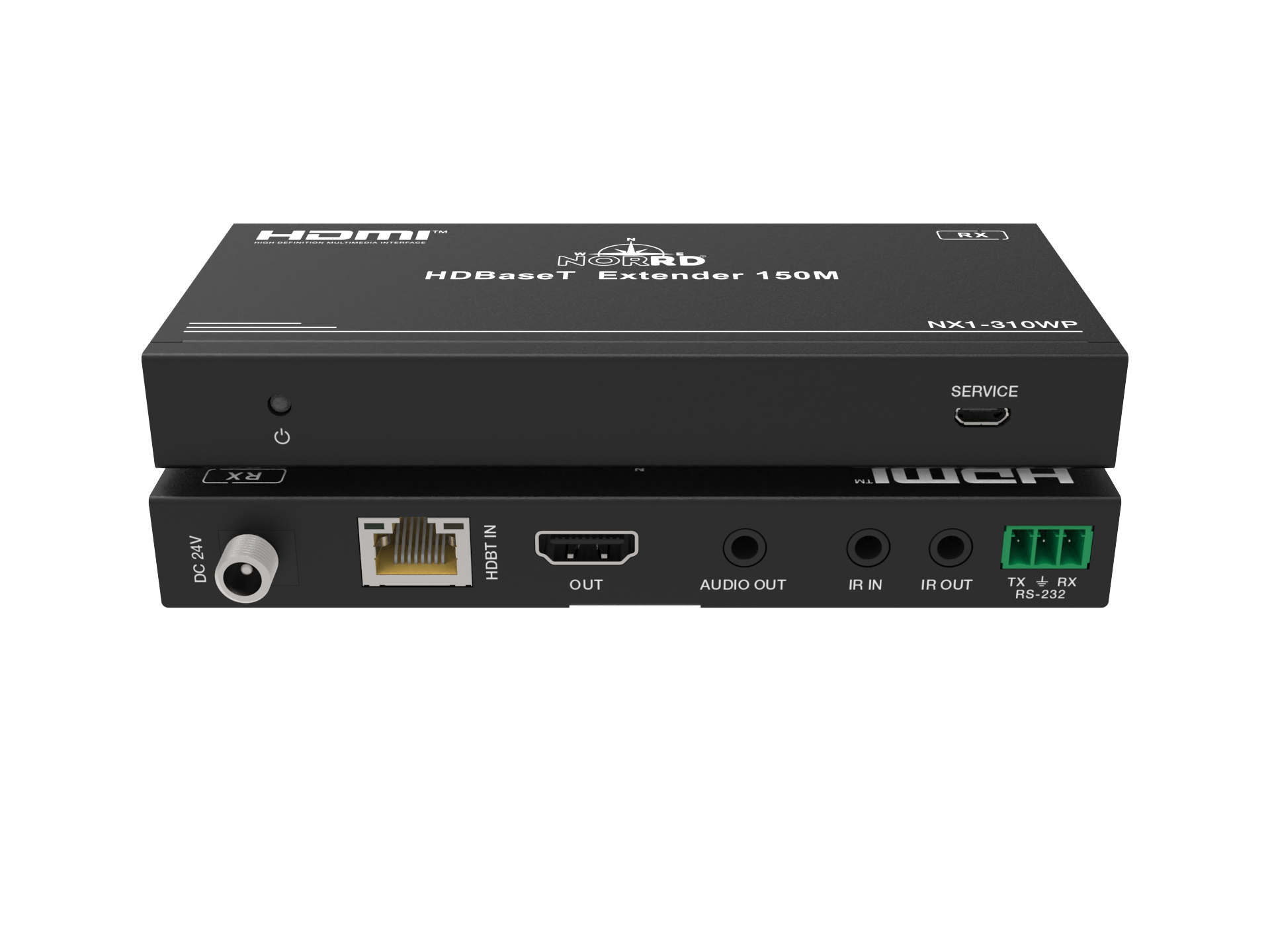

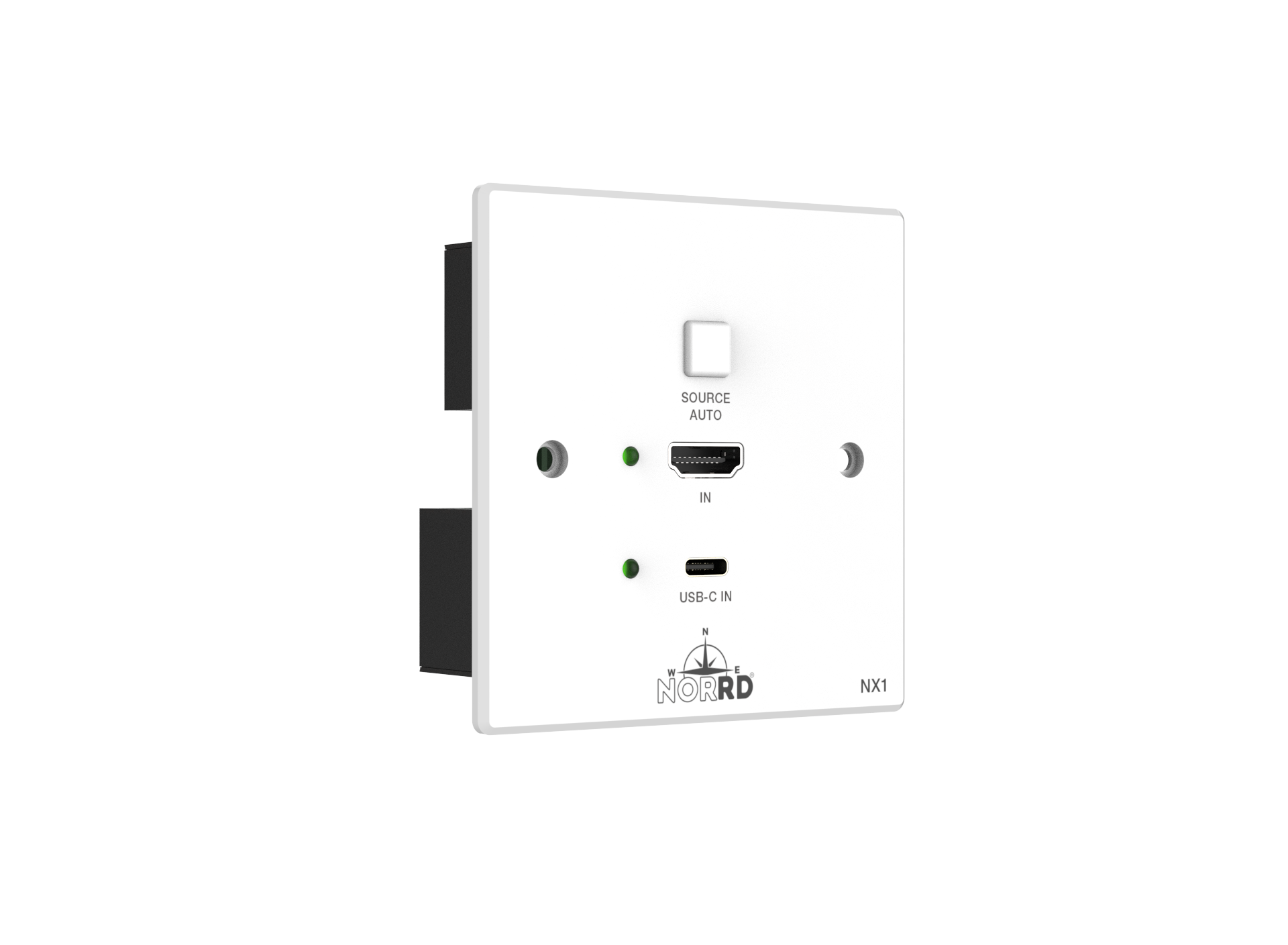

Norrd NX1-310WP is a meeting-room-ready wallplate extender kit with built-in USB-C and HDMI inputs and automatic 2-way switching, letting presenters connect with whichever cable suits their device. The EU 1-gang wallplate sends uncompressed HDMI 2.0b video over HDBaseT to the receiver through a single CAT6/6A cable, supporting up to 4K@60Hz 4:4:4 with full 18 Gbps bandwidth and HDR formats for sharp, accurate image reproduction. Built for real-world installations, NX1-310WP reaches up to 40 m at 4K60 or 70 m at 1080p, making it ideal when displays and sources are separated across rooms, tables, or ceilings. Integration is straightforward thanks to two-way IR and RS-232 pass-through for remote control of both source and display. Power is flexible: with 24V Power-over-Cable, you can supply power at whichever end suits the install, reducing the need for extra outlets and simplifying retrofit jobs. The receiver features audio de-embedding for connecting to external audio systems such as DSP processors and amplifiers. In short, NX1-310WP is a tidy, professional wall-to-display solution that delivers dual-input switching, full-quality 4K video, long-distance reliability, and integrator-friendly control — perfect for modern meeting rooms, classrooms, and collaboration spaces.
